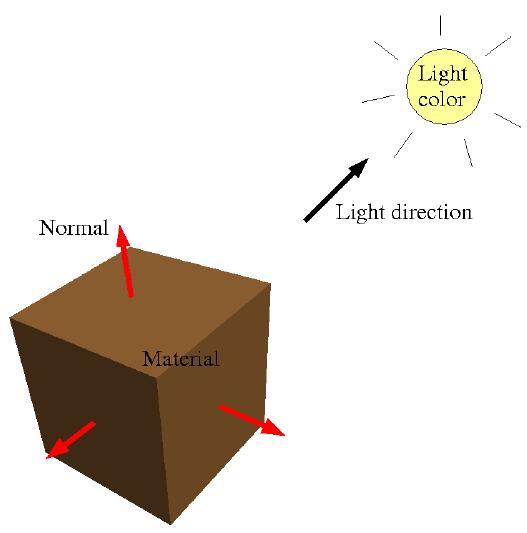

Lighting

To make OpenGL use lighting calculations when drawing objects, enable GL_LIGHTING:

    glEnable(GL_LIGHTING);

Lights

Next, you must define at least one light source. You have to enable it, and can assign it a color and position. e.g.:

    GLfloat white[4] = { 1, 1, 1, 1 };
    GLfloat lightPos[4] = {0, 1, 0, 0};
    glEnable(GL_LIGHT0);
    glLightfv(GL_LIGHT0, GL_DIFFUSE, white);
    glLightfv(GL_LIGHT0, GL_POSITION, lightPos);

Example: gluQuadrics-lit.c

Materials

For objects to have a color other than the default grey, you must set their material properties. These define how the objects reflect the light that shines on them.

    GLfloat blue[4] = { .1, .4, 1, 1 };
    GLfloat white[4] = { 1, 1, 1, 1 };
    glMaterialfv(GL_FRONT, GL_DIFFUSE, blue);
    glMaterialfv(GL_FRONT, GL_AMBIENT, blue);
    glMaterialfv(GL_FRONT, GL_SPECULAR, white);
    glMaterialf(GL_FRONT, GL_SHININESS, 120.0);

Example: glutGeometry-lit.c

Normals

To calculate how much light reflects off of a surface, OpenGL needs to know which direction the surface is facing. It combines this information with the direction that the light is shining to compute the diffuse component of the lighting.

A normal vector, defined with glNormal, is a vector perpendicular to the surface, thus defining the surface's orientation.

    glBegin(GL_QUADS);
     glNormal3f(-0.707, 0.0, 0.707);
     glVertex3f(-9.0, 1.0, -7.0);
     glVertex3f(-3.0, 1.0, -1.0);
     glVertex3f(-3.0, 7.0, -1.0);
     glVertex3f(-9.0, 7.0, -7.0);
    glEnd();

Example 1: squares-lit.c
Example 2: waves-lit.c
