3D Projections

A projection is a mathematical method of transforming 3 dimensional data into 2 dimensions.

There are two basic types of graphics projections - orthographic & perspective. These projections transform a box or pyramid like section of 3D space into the 2D area of the window.

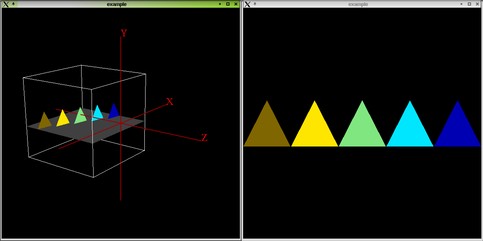

Orthographic

Projects a rectilinear box

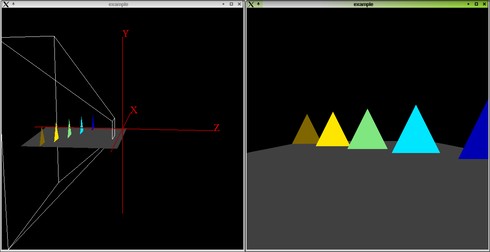

Perspective

Camera-like projection

Projects a frustum (truncated pyramid)
