Transparency & Alpha

Secret Maryo Chronicles by Florian Richter & the SMC Team, GPL licensed






Alpha



alpha
1.0fully opaque
0.5half transparent
0.0fully transparent





Blending

Most common method:

R = A1 * R1 + (1-A1) * R2
G = A1 * G1 + (1-A1) * G2
B = A1 * B1 + (1-A1) * B2


e.g. if alpha is 0.25:
R = 0.25 * R1 + 0.75 * R2
G = 0.25 * G1 + 0.75 * G2
B = 0.25 * B1 + 0.75 * B2





Blending

Many different formulas for blending colors can be used

Formula is defined by glBlendFunc() function


R = A1 * R1 + (1-A1) * R2
G = A1 * G1 + (1-A1) * G2
B = A1 * B1 + (1-A1) * B2

is defined by:

  glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA)





Blending

Enable blending    glEnable(GL_BLEND)

Set the blending function    glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA)

Assign alpha < 1    glColor4f(1, 0, 0, 0.5)

BlendFunc is applied to pixels as they are drawn - blending incoming color with color in the frame buffer






Smooth-shaded Alpha

Alpha is treated like any other color component


If alpha differs at each vertex, it will be smoothly interpolated.
Can give objects soft edges.


Time-varying Alpha

Changing alpha over time can make an object a fade in or out






Texture Alpha

Use 4 channel texture image

Can be used to "cut out" a texture image - creates complex shapes with simple geometry

RGB Alpha






Chroma Keying

Used in film & video to composite live actors with other imagery (video or digital)

e.g. TV weatherman, Star Wars virtual sets

Can be done digitally by finding a background color, and setting alpha to 0 for those pixels

Example code: chromakey.py






Other Blend Functions

General blending formula is:

R = SourceFactor * Rs + DestinationFactor * Rd
G = SourceFactor * Gs + DestinationFactor * Gd
B = SourceFactor * Bs + DestinationFactor * Bd

(Rs, Gs, Bs) is the source color (object being drawn)
(Rd, Gd, Bd) is the destination color (color already in the framebuffer)

SourceFactor and DestinationFactor are defined by glBlendFunc()






Other Blend Functions

Factor name Computed factor
GL_ZERO 0
GL_ONE 1

GL_SRC_ALPHA As
GL_ONE_MINUS_SRC_ALPHA 1 - As

GL_DST_ALPHA Ad
GL_ONE_MINUS_DST_ALPHA 1 - Ad

GL_CONSTANT_ALPHA Ac
GL_ONE_MINUS_CONSTANT_ALPHA 1 - Ac

GL_SRC_COLOR (Rs, Gs, Bs)
GL_ONE_MINUS_SRC_COLOR (1 - Rs, 1 - Gs, 1 - Bs)

GL_DST_COLOR (Rd, Gd, Bd)
GL_ONE_MINUS_DST_COLOR (1 - Rd, 1 - Gd, 1 - Bd)

GL_CONSTANT_COLOR (Rc, Gc, Bc)
GL_ONE_MINUS_CONSTANT_COLOR (1 - Rc, 1 - Gc, 1 - Bc)

GL_SRC_ALPHA_SATURATE min(As, 1 - Ad)





Filters

Blending can be used to apply a color filter to the whole scene

Draw a square that covers the entire window, with the appropriate blending function

 # Dim the scene

glBlendFunc(GL_ZERO, GL_SRC_ALPHA)
glColor4f(1.0, 1.0, 1.0, 0.5)
 # Apply a purple filter

glBlendFunc(GL_ZERO, GL_SRC_COLOR)
glColor4f(1.0, 0.0, 0.5, 1.0)
 # Invert all the colors

glBlendFunc(GL_ONE_MINUS_DST_COLOR, GL_ZERO)
glColor4f(1.0, 1.0, 1.0, 1.0)










Particles

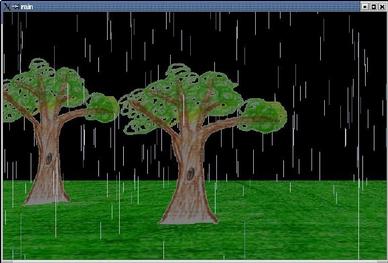

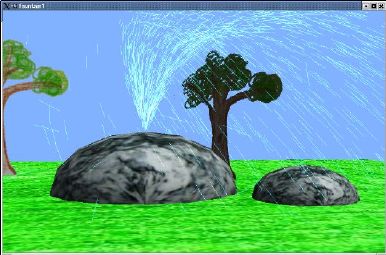

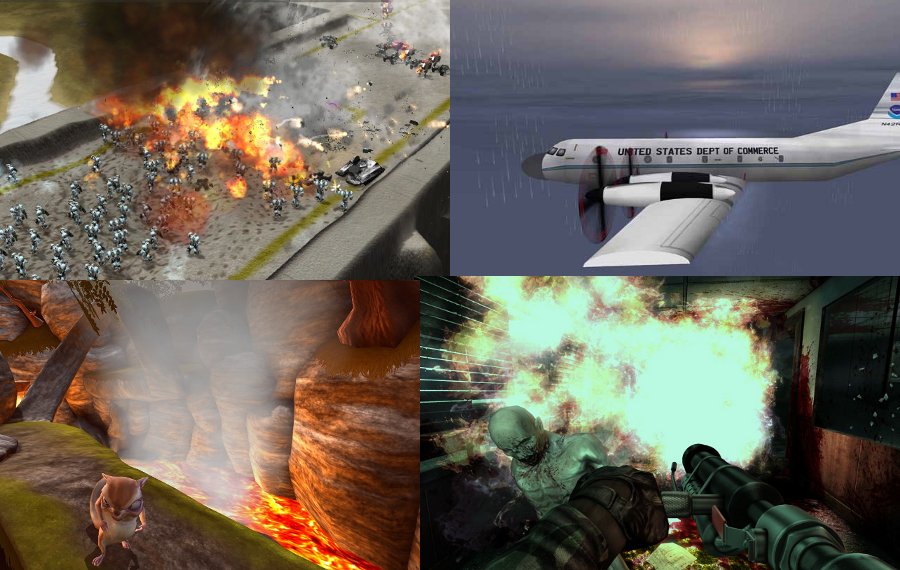

Spring RTS engine, Second Life (Linden Labs / NOAA),
Yo Frankie! (Blender Institute), Killing Floor (Tripwire Interactive)





Particle Systems

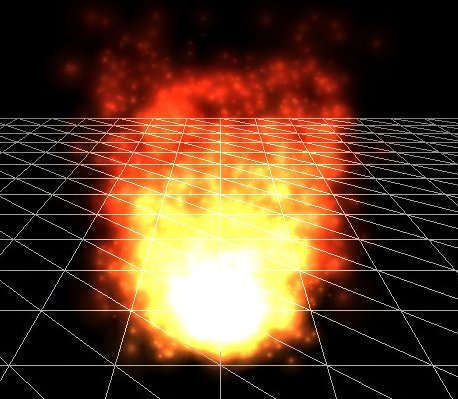

A method of modeling "fuzzy" objects - e.g. fire, smoke, water

Introduced in 1982, in the Star Trek II "Genesis Effect"

Model complex objects not easily represented by ordinary surfaces - large masses of simple, dynamic particles are used.






Particles

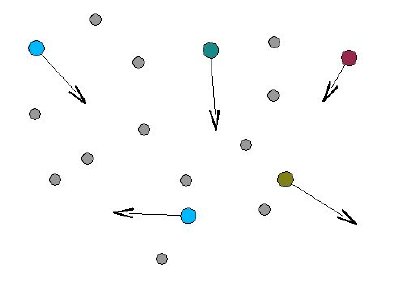

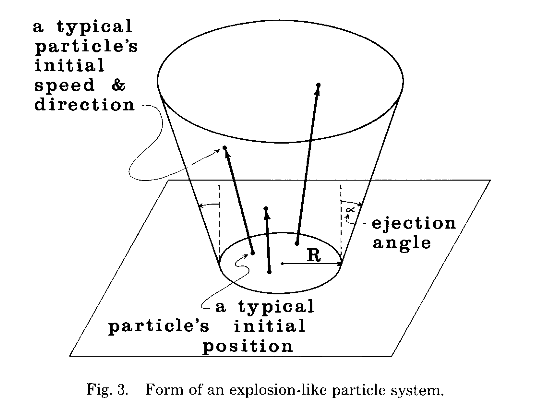

Particles are usually treated as simple points with position, velocity, and color.

Individual particles are added to the system, move about, are affected by forces such as gravity, and eventually die out.






Particle Data

Example C data structure:

struct _particle
    {
     Vector3 position;
     Vector3 tailPosition;
     Vector3 velocity;
     Vector3 color;
     float removeTime;
    };

struct _particle * particleArray;





Particle Code

Particle system code has three major parts:






Particle Class - Python

Example Python class:

class particle:
    def __init__(self, position=Vector([0,0,0])):
        self.position = position
        self.velocity = Vector([uniform(-3,3), 8, uniform(-3,3)])
        self.color = [uniform(.5,1), uniform(0,1), uniform(0,0.5)]
    def update(self, dt):
        self.velocity += gravity * dt
        self.position += self.velocity * dt

class particleSystem:
    def __init__(self):
        self.particles = []
    def addParticles(self, num):
        for i in range(0,num):
            self.particles.append(particle())
    def updateParticles(self, dt):
        for p in self.particles:
            p.update(dt)
    def drawParticles(self):
        ...
...

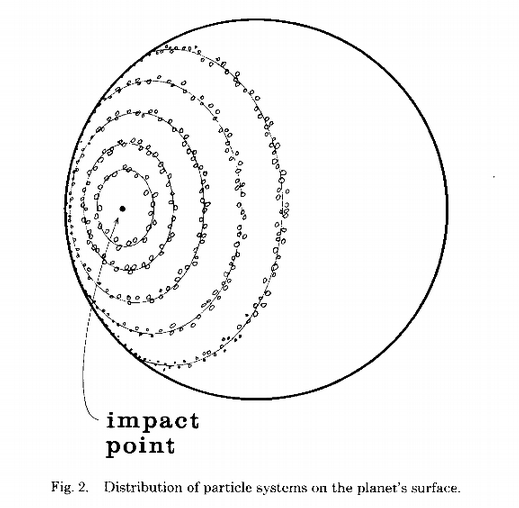

Genesis Effect






Genesis Effect






Rendering Particles

Particles can be drawn in different ways, for different visual effects.

The simplest way is using points or lines.







Other Primitives

Particles don't have to be rendered as just points or lines.

A common alternative to points & lines for particles is simple textured polygons. For smoke or clouds, the texture would look like a single puff.

In this case, one uses fewer particles, as each is much larger than a single point.






Cumulative Rendering

When drawing particles, we often want them to "add up" in some way to form a fuzzy effect, rather than looking like just a set of individual points or lines.

This can be done using blending. Disabling depth-buffer-writing in this case is useful, because we don't want the particles to obscure each other.






Cumulative Rendering

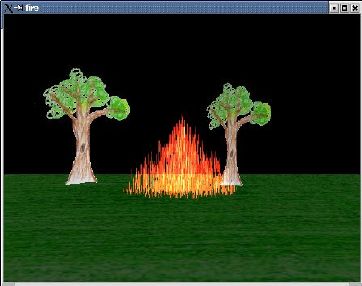

glEnable(GL_BLEND)
glBlendFunc(GL_ONE, GL_ONE)
glDepthMask(GL_FALSE)
glBegin(GL_LINES)
for p in particles:
    glColor3fv(p.color)
    glVertex3fv(p.tailPosition)
    glVertex3fv(p.position)
glEnd()
glDepthMask(GL_TRUE)
glBlendFunc(GL_ONE, GL_ZERO)
glDisable(GL_BLEND)





Forces

Particles can be affected by forces. This can be implemented in the same way as applying forces to ordinary solid objects.

for p in particles:
    accel = gravityAccel + windAccel
    p.velocity += accel * dt
    p.tailPosition = p.position
    p.position += p.velocity * dt





Optimization

A particle system can have hundreds (or thousands) of individual particles.
Operations on each particle can add up and make things slow.
For real-time use, minimize the number of particles, and avoid, simplify, or pre-calculate any expensive operations.

Expensive operations include:






Grass






Trees






Hair / Fur
