3D Coordinates

3D graphics adds a Z coordinate

OpenGL coordinate system is right-handed - +X to the right, +Y up, +Z out of screen

Other software or application domains may use other coordinate systems

3D Viewing

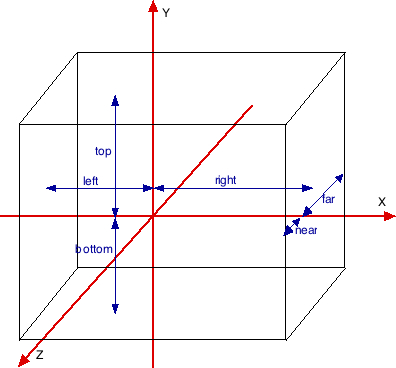

The 3D viewing volume is controlled by glOrtho.
This is an axis-aligned box containing the region to be drawn.

   glOrtho(left, right, bottom, top, near, far)

Note that near and far can be confusing - they are the negatives of the Z values for the corresponding planes.

glOrtho

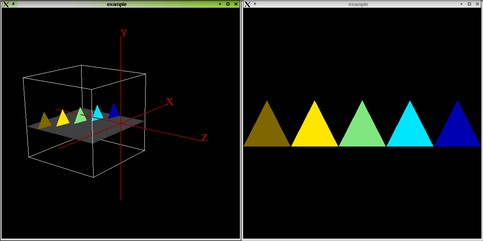

glOrtho(-5, 8, -4, 4, -1, 3)

3D Transformations

All OpenGL transformation functions are 3D; we can now use the Z coordinate

glTranslatef(x, y, z)

Moves objects by (x, y, z) units.

glRotatef(angle, x, y, z)

Rotates objects around the axis (x, y, z), by angle degrees.

Note that "the axis (x, y, z)" means a line that from the origin (0, 0, 0) through the point (x, y, z)

glScalef(x, y, z)

Resizes objects by the factor x in the X direction, y in the Y direction, and z in the Z direction.

Complex Geometry

Simple objects can be created by just writing code - "hard coding" the vertex positions, colors, etc, in your program

This doesn't work well as things get more complex

Some solutions:

Encapsulate in functions
Procedural geometry (math)
Data files (models)

Geometry Functions

	GLUT shapes
GLU quadrics		GLUT text

GLUT Shapes

Glut provides functions to draw several basic shapes - Platonic solids, simple curves, and teapots.

They can be drawn either with solid polygons, or in wireframe.

     glutSolidSphere(1.5, 16, 8)

     glutWireDodecahedron()

Example code: glutGeometry.py

GLUT Shapes

Sphere	glutSolidSphere(radius, slices, stacks)
Cone	glutSolidCone(baseRadius, height, slices, stacks)
Torus	glutSolidTorus(innerRadius, outerRadis, sides, rings)
Tetrahedron	glutSolidTetrahedron()
Cube	glutSolidCube(size)
Octahedron	glutSolidOctahedron()
Dodecahedron	glutSolidDodecahedron()
Icosahedron	glutSolidIcosahedron()
Teapot	glutSolidTeapot(size)

GLU Quadrics

Quadrics are various smooth surfaces described by functions like:

x² + y² + z² = r²

The basic GLU quadrics are spheres, cylinders, cones, and disks.

To draw one, create a "quadric object" and pass it to the appropriate GLU function. There are functions to control how a quadric is drawn - with points, lines, or polygons; with or without lighting; with or without texturing.

quadric = gluNewQuadric()
gluQuadricDrawStyle(quadric, GLU_LINE)
gluSphere(quadric, 2.5, 32, 24)

Example code: gluQuadrics.py

GLU Quadrics

Sphere	gluSphere(quadric, radius, slices, stacks)
Cylinder	gluCylinder(quadric, baseRadius, topRadius, height, slices, stacks)
(a cone is a cylinder with one radius = 0)
Disk	gluDisk(quadric, innerRadius, outerRadius, slices, rings)
Partial Disk	gluPartialDisk(quadric, innerRadius, outerRadius, slices, rings, startAngle , sweepAngle)

Model Files

As with images, there are many file formats for storing 3D models.

Wavefront (.obj)
Inventor (.iv)
VRML / X3D
3D Studio (.3ds)
OpenFlight (.flt)
...

Object formats can contain:

Geometry data - vertex positions, faces
Colors / material properties
Textures
Transformations

Wavefront OBJ Files

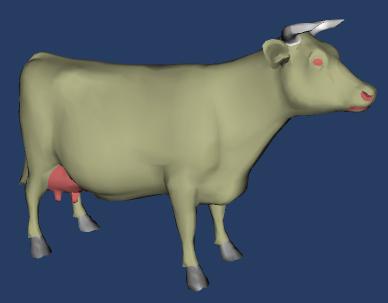

cow.obj

OBJ Format

An OBJ file is a plain text file, containing vertices, polygon faces, and other information. Each vertex, face, etc, is given on a separate line.

Each line begins with a token to identify what sort of line it is - 'v' for vertex, 'f' for face, etc.

v x y z

vertex position

vn x y z

vertex normal

vt u v

texture coordinate

f v1 v2 v3 ...

face (list of vertex numbers)

mtllib file.mtl

file containing material descriptions

usemtl name

current material to apply to geometry

Hidden Surfaces

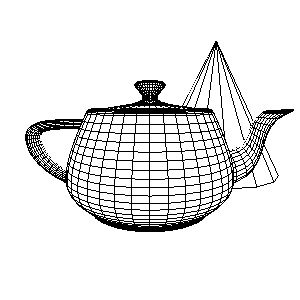

Hidden surfaces provide occlusion depth cue

Hidden Surface Algorithms

Many different algorithms developed over the years

Painter's algorithm
- sort everything from back to front
Binary Space Partition (BSP) tree
Ray casting / Ray tracing
Depth buffering
(aka Z buffering)
etc

Ray Tracing

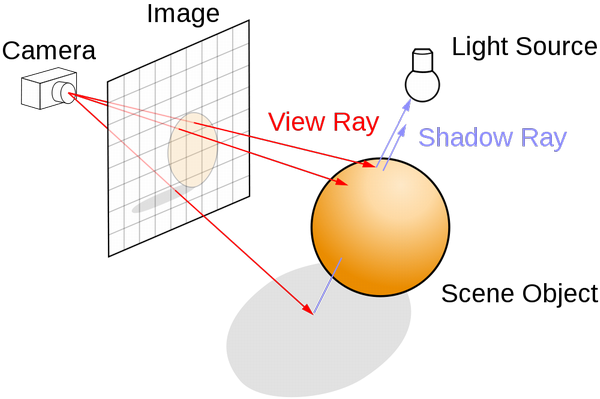

CC-BY-SA diagram by Henrik

For each pixel, compute a ray backwards from the eye through the pixel
Test for intersection with any objects
Trace rays from intersection point to light sources
Check for occlusion of rays to lights (shadows)

Depth Buffering

Rendering a polygon means filling pixels

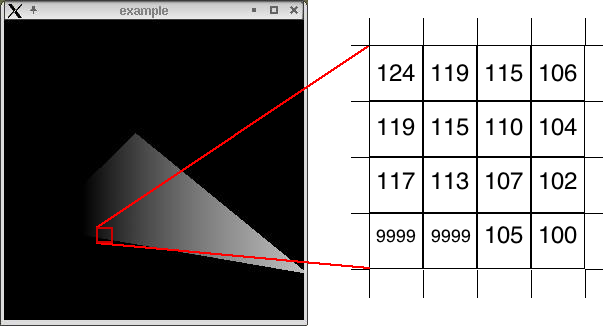

Color buffer contains RGB color of each pixel drawn

Depth buffer contains depth of each pixel drawn

Color	Depth

Depth Buffer

When drawing a new pixel, compare new depth to what's stored in depth buffer

Color	Depth

Polygons can be drawn in any order
Polygons can intersect

OpenGL Depth Buffering

Space must be allocated for the depth buffer:

glutInitDisplayMode(GLUT_RGB|GLUT_DOUBLE|GLUT_DEPTH)

Depth buffering must be enabled:

glEnable(GL_DEPTH_TEST)

Depth buffer must be cleared each frame:

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)

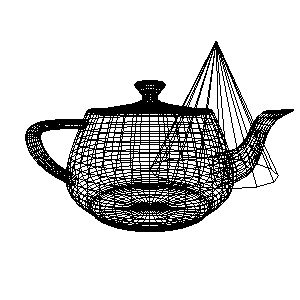

Depth Fighting

Depth values have limited resolution

i.e. the numbers are not infinitely precise

Rounding errors occur when polygons are filled

Polygon overlap can cause "depth-fighting"

Perspective Projection

Splinter Cell (Ubisoft)

Perspective-related depht cues are created by a perspective projection transformation

Linear perspective
Relative size
Relative height
Texture gradient

Perspective + movement yields motion parallax

Orthographic Projection

Orthographic projection : projects rectilinear box onto display
Objects will not appear to change size with distance

Perspective Projection

Perspective projection : projects frustum (truncated pyramid) onto disp lay
Near objects appear larger, distant objects appear smaller

Perspective Projection

GL's perspective projection is, conceptually, a pin-hole camera, located at origin, looking down -Z axis

Camera has a field-of-view - angle representing (horizontal) extent of region viewed

Small angle = narrow field-of-view = telephoto lens
Large angle = wide field-of-view = wide-angle lens

OpenGL Perspective

    gluPerspective( fovy, aspect, zNear, zFar )

fovy = field of view, in Y direction, in degrees

aspect = aspect ratio (X:Y) of window

zNear = distance to near clipping plane

zFar = distance to far clipping plane

The "eye-point" of the perspective projection is at (0,0,0)

Example:

    gluPerspective(45, 1.333, 0.1, 100)

This document is by Dave Pape, and is released under a Creative Commons License.
