Splinter Cell (Ubisoft)
Depth values have limited resolution
i.e. the numbers are not infinitely precise
Rounding errors occur when polygons are filled
Polygon overlap can cause "depth-fighting"
Perspective-related depht cues are created by a perspective projection transformation

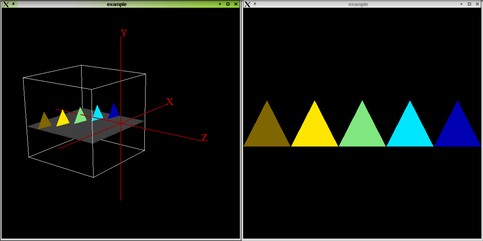

Orthographic projection : projects rectilinear box onto display
Objects will not appear to change size with distance

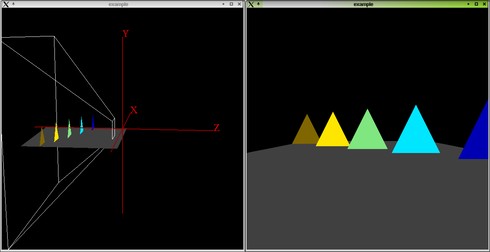

Perspective projection : projects frustum (truncated pyramid) onto disp
lay
Near objects appear larger, distant objects appear smaller
GL's perspective projection is, conceptually, a pin-hole camera, located at origin, looking down -Z axis
Camera has a field-of-view - angle representing (horizontal) extent of region viewed
Small angle = narrow field-of-view = telephoto lens
Large angle = wide field-of-view = wide-angle lens
gluPerspective( fovy, aspect, zNear, zFar )
fovy = field of view, in Y direction, in degrees
aspect = aspect ratio (X:Y) of window
zNear = distance to near clipping plane
zFar = distance to far clipping plane
The "eye-point" of the perspective projection is at (0,0,0)
Example:
gluPerspective(45, 1.333, 0.1, 100)
The OpenGL camera is always positioned at the origin, looking down the -Z axis.
The camera itself never moves.
Looking at the final image produced, moving a camera is equivalent to moving the world in the opposite direction.
e.g. moving everything to the right is will produce the same image as moving the camera to the left.
To give the effect of moving the perspective viewpoint in OpenGL, use a transformation at the beginning of the frame, which affects all objects.
For example, to move the camera 10 units from the origin
in the +Z direction, translate the world by -10 in Z:
def draw():
glMatrixMode(GL_PROJECTION)
glLoadIdentity()
gluPerspective(fovy, 1, 0.1, 100)
glMatrixMode(GL_MODELVIEW)
glLoadIdentity()
glTranslatef(0, 0, -10)
drawObjects()
For general camera movement:
def draw():
global cameraPos
global cameraHeading
glLoadIdentity()
glRotatef(-cameraHeading, 0, 1, 0)
glTranslatef(-cameraPos[0], -cameraPos[1],
-cameraPos[2])
drawObjects()
Inverse of glTranslatef(x, y, z) is glTranslatef(-x, -y, -z)
Inverse of glRotatef(angle, x, y, z) is glRotatef(-angle, x, y, z)
Inverse of glScalef(x, y, z) is glScalef(1.0/x, 1.0/y, 1.0/z)
Inverse of a series of transformations is the inverses of the individual transformations, in reverse order.
Alternative method of camera control
gluLookAt computes and applies an appropriate translation & rotation
gluLookAt(cameraX, cameraY, cameraZ,
lookX, lookY, lookZ,
upX, upY, upZ)
cameraX, cameraY, cameraZ is camera location - point to look from
lookX, lookY, lookZ is point to look at
upX, upY, upZ is "up-direction" for the camera - affects camera roll
A vector is a direction and magnitude (length). Vectors are used to represent many different things - light source directions, surface orientations, relative distances between objects, etc.
We normally describe a vector as a triplet of (X, Y, Z) values - (vx, vy, vz) represents a vector that points vx units in the direction of the X axis, vy units in the direction of the Y axis, and vz units in the direction of the Z axis.
e.g., (2, 0, 0) is a vector pointing in the direction of the X axis, 2 units long. (1, 1, 0) is a vector pointing at a 45 degree angle between the X and Y axes, 1.414 units long.
The magnitude of a vector (x,y,z) is its Euclidean length - the square root of vx2 + vy2 + vz2.

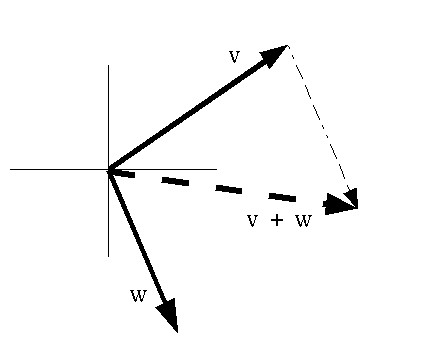

Two vectors can be combined by adding their corresponding components
together.
i.e. (vx, vy, vz) +
(wx, wy, wz) is
(vx+wx, vy+wy, vz+wz
).
Or, written more expansively:
| vx | | wx | | vx + wx | | vy | + | wy | = | vy + wy | | vz | | wz | | vz + wz |
The result is a vector that is equivalent to sticking the vector W onto the end of vector V, and creating a new vector from the beginning of V to the end of W.
A vector can be multiplied by a single number (a "scalar") to change its length without changing its direction.
| vx | | s * vx |
s * | vy | = | s * vy |
| vz | | s * vz |
The dot product of two vectors is an operation defined as:
| x0 | | x1 | | y0 | * | y1 | = x0*x1 + y0*y1 + z0*z1 | z0 | | z1 |The result is a single number, which is equal to the product of the lengths of the two vectors and the cosine of the angle between them.
It can tell us how much two vectors point in the same direction - it is maximum when they point in exactly the same direction, and it's 0 when they're at right angles.
The cross product is a function of two vectors that will produce a new vector perpendicular to both. The length of the cross product is equal to the area of the parallelogram formed by the two vectors.
The formula for the cross product of two vectors A & B is:
[ ( Ay Bz - Az By ), ( Az Bx - Ax Bz ), ( Ax By - Ay Bx ) ]
The Python equivalent is:
def crossProduct(A,B):
return [ A[1] * B[2] - A[2] * B[1],
A[2] * B[0] - A[0] * B[2],
A[0] * B[1] - A[1] * B[0] ]
The direction of the cross product is determined by the right-hand rule applied from vector A to vector B (so if you multiply them in the reverse order, the result will point the opposite direction).
A vector can be used to represent the motion of an object.
The vector indicates the object's velocity - the direction of the vector is the direction that the object is moving, the magnitude of the vector is the speed.
The vector corresponds to how the object will move in one unit of time.
e.g., a velocity vector of (2, 0, 0) indicates that the object is
moving 2 meters/second along the X axis (assuming our units are meters
and seconds).
If it starts at (3, 1, 0), then after 1 second its position will be
(5, 1, 0). After 2 seconds, its position will be (7, 1, 0).
[Note that the choice of units is arbitrary, and is up to you when writing your programs; all that matters is that you be consistent within a program, and not, for instance, try to combine meters per second with miles per hour.]
In general, if an object starts at position P0, with velocity V, then after t time units, its position P(t) will be:
P(t) = P0 + t * V
Creating a vector class allows one to work with vectors more simply.
Vector operations just require a single statement, rather than a loop or separate statements for X, Y, & Z components.
a = Vector((1, 2, 3))
b = Vector((0, -1, 0))
c = a + 2 * b
d = a.dot(b)
Misc functions:
