Python's urllib or urllib2 can be used to fetch web data.
e.g. textures or sounds
try:
webdata = urllib2.urlopen(url).read()
except:
return None
webdataAsFile = StringIO.StringIO(webdata)
tex = Texture2D(webdataAsFile)
Example: texURL.py
Python also includes standard modules for creating a simple web server.
Use SimpleHTTPServer or CGIHTTPServer.
from BaseHTTPServer import *
from SimpleHTTPServer import *
port = 8000
httpd = HTTPServer(('',port),SimpleHTTPRequestHandler)
httpd.serve_forever()
GLUT provides functions to draw two types of text:
Both functions draw just a single character
Example: glutText0.py
Strings are handled by calling them in a loop
Example: glutText1.py

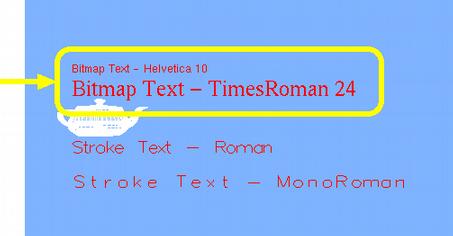

Characters are bitmaps - arrays of pixel data
Starting position set by glRasterPos2f or glRasterPos3f
Size never changes (unaffected by scaling or perspective)
Always screen-aligned
If starting point is off screen, nothing is drawn

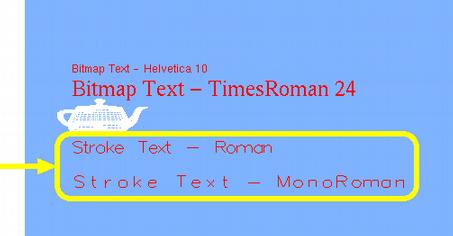

Characters are series of GL lines
Position, size, and orientation affected by normal GL transformations
glutStrokeCharacter() includes transformation to make next character follow current one

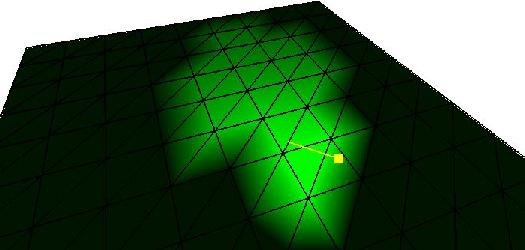

Normally, local light sources shine equally in all directions.
Using spotlight options, you can have a light shine in a particular direction.
A spotlight's beam is a cone starting from the light position and pointing in the spotlight direction (GL_SPOT_DIRECTION).
The angle of the cone is defined by the GL_SPOT_CUTOFF value.
GL_SPOT_EXPONENT makes the brightness of the spotlight fall off toward the edges.
glLightfv(GL_LIGHT0, GL_SPOT_DIRECTION, direction) glLightf(GL_LIGHT0, GL_SPOT_CUTOFF, angle) glLightf(GL_LIGHT0, GL_SPOT_EXPONENT, exponent)
All lighting calculations are done only at the vertices.
Spotlights, like specular highlights, will not work well with large polygons.
The geometry must be finely tesselated for a good spotlight effect.
In the real world, the amount of illumination from a light source decreases the farther away you are from it.
By default, OpenGL lighting is the same, no matter how far you are from a light source.
Attenuation simulates the falloff of light with distance.
OpenGL attenuation uses a formula with 3 adjustable coefficients, so that you can vary light realistically, or semi-realistically:
1
brightness = -----------------------
Kc + Kl * d + Kq * d^2
These coefficients are controlled by the following calls:
glLightf(GL_LIGHT0, GL_CONSTANT_ATTENUATION, Kc); glLightf(GL_LIGHT0, GL_LINEAR_ATTENUATION, Kl); glLightf(GL_LIGHT0, GL_QUADRATIC_ATTENUATION, Kq);
Some example results:
| Kc, Kl, Kq | d = 0 | d=0.5 | d=1 | d=10 | d=100 |
|---|---|---|---|---|---|
| 1, 0, 0 | 1 | 1 | 1 | 1 | 1 |
| 1, 0.1, 0 | 1 | 0.95 | 0.91 | 0.5 | 0.09 |
| 1, 0, 0.1 | 1 | 0.98 | 0.91 | 0.09 | 0.001 |
| 0.1, 0.1, 0 | 10 | 6.67 | 5 | 0.91 | 0.1 |
Two-sided lighting affects how the backs of polygons are rendered.
It is enabled with glLightModel:
glLightModelf(GL_LIGHT_MODEL_TWO_SIDE, GL_TRUE)
A separate material can be specified for the backs of polygons:
glMaterialfv(GL_BACK, GL_DIFFUSE, [1, 1, 1, 1])
The front of a polygon is the side where the vertices appear in counter-clockwise order.
| Front | Back |
|---|---|
 |  |
When two-sided lighting is enabled:
if front side of polygon faces camera:
use GL_FRONT material
use normal as given
else if back side faces camera:
use GL_BACK material
reverse normal
When two-sided lighting is not enabled, the back of a polygon is illuminated exactly the same as the front - both sides will show the same color.
Fog is a useful effect for realistic large-scale scenes.
It provides an additional depth cue for distant objects - aerial perspective.
It can also be used to hide the edges of a 3D world.
OpenGL fog mixes the color of a fragment with the color of the fog. The degree of mixing is a function of the distance from the camera to the fragment.
finalColor = (1-f) * polyColor + f * fogColor
Example:
glEnable(GL_FOG)
glFogi(GL_FOG_MODE, GL_LINEAR)
glFogfv(GL_FOG_COLOR, [1, 1, 1, 1])
glFogf(GL_FOG_START, 5.0)
glFogf(GL_FOG_END, 40.0)
There are three different fog modes:
