Fractals






Fractals

Fractals feature fine detail at arbitrary scales.

They are usually highly irregular.

They exhibit some degree of self-similarity.

They can be mathematically defined.

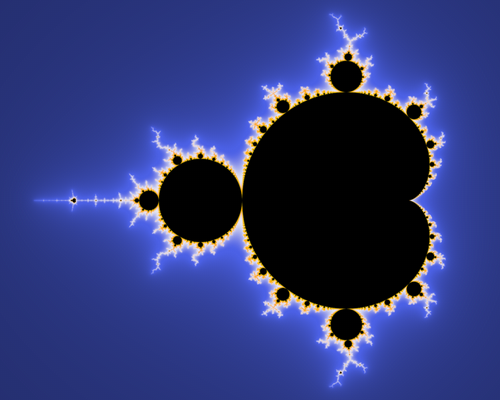

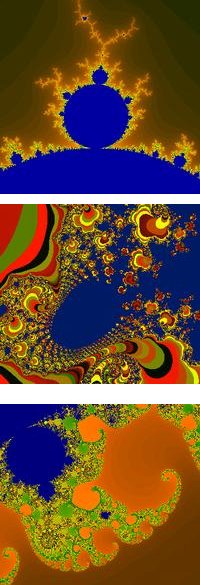

Mandelbrot set

Classic fractal image, described by Benoit Mandelbrot.

The set is those points (c) in the complex plane for which the formula:

    z = z2 + c
remains finite when applied iteratively.

This can be estimated by

    z = c
    for i in range(0, maxIterations):
        z = z*z + c
        if abs(z) > 2: return False
    return True

Sample code: glmandelbrot.py




Other Fractals

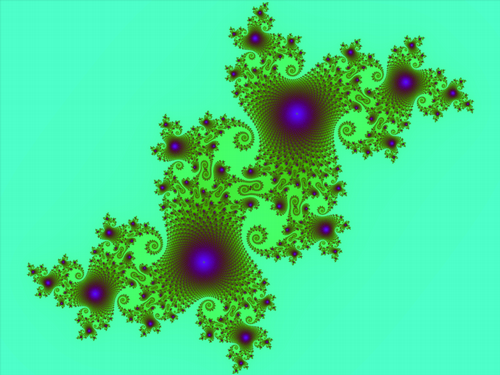

Julia Set





Other Fractals

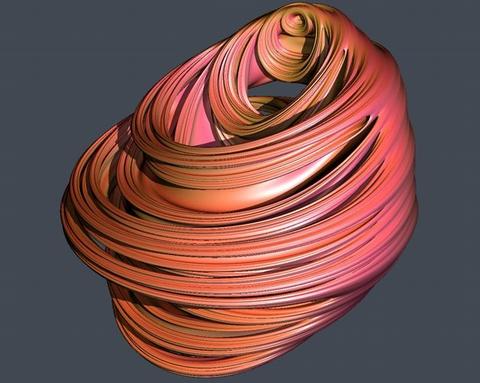

Quaternion (4D) Julia Set





Other Fractals


Koch Curve





Fractal terrain

Fractal terrain can be generated in different ways, some using statistical filtering of noise.

Another, simple method is "midpoint subdivision".

Start with a basic terrain model, and add detail - split each edge at its midpoint, and move the point up or down randomly.

The maximum amount of displacement possible should decrease as the scale decreases.

Sample code: mountain1d.py




Fractal terrain

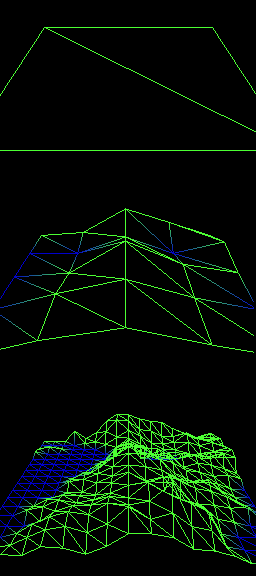

Fractal terrain that is a full 2D surface (rather than 1D line) is created by making a grid of points, and applying the midpoint subdivision approach.

Sample code: mountain2d.py




Fractal terrain

A fractal heightfield can also be used for other purposes.

e.g.: clouds, noise textures

Sample code: heightfield.py




Fractal terrain


Rescue on Fractalus

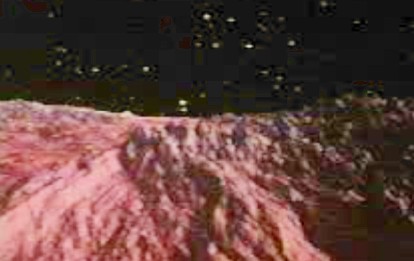

Genesis Effect


Creative Commons License
This document is by Dave Pape, and is released under a Creative Commons BY-2.0 License.
