Python

Visit python.org for lots of information, and to download a copy of Python.

Python is an object-oriented scripting language.
Some highlights are:

Object-oriented
Interpreted
Portable
Open source / free

Python

Features:

Dynamic data typing
Automatic memory management
Advanced data types (strings, lists, dictionaries)
A large standard library
Extensible & embeddable

A comparison

C / C++	int factorial(int n) { if (n > 0) return n * factorial(n-1); else return 1; }

Python	def factorial(n): if n > 0: return n * factorial(n-1) else: return 1

Building Blocks

Comments
Numbers
Strings
Lists
Variables
Operators
Statements
- Assignment
- If - elif - else
- For loops
- While loops
Functions
Variable scope
Modules
Advanced data types

Comments

Anything following a # is a comment.

>>> print 1      # this is a comment
1
>>> # This whole line is a comment

Numbers

Numbers can be integers or floating point. e.g.:

Hexadecimal & octal numbers, complex numbers, and 'long' integers are also supported.

>>> print 0xff
255

>>> print 1j * 1j
(-1+0j)

>>> print 1234567890123456789
1234567890123456789

Strings

Strings ("string literals", to be precise) are enclosed in quotes (single or double).
Multi-line strings are enclosed in triple-quotes.

    'x'
    "Hello, world"
    """Twas brillig and the slithy toves
    did gyre and gimble in the wabe."""

Values can be written into a string with the % operator:

    >>> x = 1
    >>> y = 2
    >>> 'x = %d, y = %f' % (x,y)
    'x = 1, y = 2.000000'

Lists

Lists are like arrays in C, but they are dynamically allocated.
They can grow to any size, without being fixed in advance.

A list is written in square brackets; entries are separated by commas.

Indexing starts from 0:

>>> x = ['a', 'b', 'c']
>>> print x[2]
c

Because Python is dynamically typed, list elements do not all have to be of the same type.

>>> x = ['abc', 17.3]
>>> y = [1, ['abc', 17.3], 2]

Variables

A variable name is a series of alphanumeric characters; the first must be a letter. Names are case-sensitive.

Variables do not need to be declared. A variable is automatically allocated when a value is assigned to it.

>>> x = 6
>>> print x * 9
54
>>> stringVariable27 = 'A string'
>>> print stringVariable27
A string
>>> y = x + stringVariable27
Traceback (most recent call last):
  File "", line 1, in ?
TypeError: unsupported operand types for +: 'int' and 'str'

Operators

Standard mathematical operators exist for numbers.
Some also apply to strings and lists.

	Numbers	Strings	Lists
+	Addition	Concatenation	Concatenation
-	Subtraction / negation
*	Multiplication	Repetition	Repetition
/	Division
%	Remainder	Formatting

Operators

Logical operators are used for conditional expressions.
Similar to C, the numeric value 0 is equivalent to the logical value 'False', and non-0 is equivalent to 'True'.

or	Logical or
and	Logical and
not	Logical negation
< <= > >= == !=	Numeric or string comparison
in	String or list membership

>>> 1 in [3,2,1] and 7 > 5
True

Statements / Code Blocks

Blocks of statements are defined by their level of indentation.
The first level of statements should have no indentation.
New levels are introduced by statements such as if, while, and for.
The if/while/for line must end with a colon.

>>> if x > 5:
...     print x, 'is greater than 5'


>>> while x > 5:
...     if y <= 6:
...             print y
...             y = y + 1
...     x = x - 1

Assignment

The = operator performs assignment of values to variables

>>> x = 7
>>> str = 'abc' * x
>>> a,b = -1, 3

Conditionals

>>> if 1 > 2:
...     print "Something's wrong"
...
>>>
>>> if (x > 3) and (x < 4):
...     y = x
... elif x > 5:
...     y = x / 2
... else:
...     y = x * 2
...

Iteration

Loops are normally performed over a list

>>> for i in ['a', 'b']:
...     print i
...
a
b

The range generates a list of numbers

>>> for j in range(0,3):
...     print j
...
0
1
2

Other statements

while

>>> while x < 10:
...     x = x * 2
...

print

>>> print 'abc' * x
abcabcabcabcabcabcabc

pass

pass is a placeholder, that does nothing (a "no-op").

Functions

Functions are defined using the def statement.
They are called using the function name followed by parentheses, with any arguments inside the parentheses.

>>> def double(x):
...     print x * 2
...
>>> double(3)
6

Functions

A value can be returned from a function by the return statement.

>>> def factorial(n):
...     if n > 0:
...             return n * factorial(n-1)
...     else:
...             return 1
...
>>> x = factorial(5)
>>> print x
120

Multiple values can be returned as a tuple.

>>> def foo(n):
...     return n*2, n*3
...
>>> a,b = foo(7)
>>> a
14
>>> b
21

Variable Scoping

By default, variables that are assigned to in a function only exist within that function - i.e. they have local scope.

The global statement declares that a variable has global scope.
This will make it visible outside of the function, after the function has been called.
It also allows you to use variables already defined in the global scope.

>>> def foo(a):
...     global y
...     y = a
...     print y
...
>>> foo(12)
12
>>> print y
12

Modules

Modules are pre-written packages of code that can be used in a Python program.
They are similar to libraries in other languages.

Many standard modules exist, such as math (trig and other math functions), and string (useful string-processing functions).

You can also create new modules to encapsulate your own code.

A module is loaded using the import statement.
Once it's imported, all of a module's functions and variables are accessible, through the module name.

>>> import math
>>> math.sin(1)
0.8414709848078965

Modules

The from ... import * statement can be used to avoid having to prefix the functions with the module name.

>>> from math import *
>>> sin(1)
0.8414709848078965
>>> pi
3.1415926535897931

Modules

Create your own modules by placing the code in a file with the extension ".py".
Don't include the .py extension when importing the module.

/home/dave> cat > mymodule.py
def foo(x):
        return x * 17

/home/dave> python
Python 2.2.2 (#1, Mar 17 2003, 15:17:58)
[GCC 3.3 20030226 (prerelease) (SuSE Linux)] on linux2
Type "help", "copyright", "credits" or "license" for more information.
>>> import mymodule
>>> mymodule.foo(3)
51

Lists - Advanced Features

Lists can be 'sliced' using indexing and the colon. This produces a sub-list.
Slicing can also be applied to strings.

>>> a = [1, 2, 3, 4, 5, 6, 7]
>>> a[3:6]
[4, 5, 6]

Other functions that exist for lists are: append, sort, reverse, index, and the global function len.

>>> b = [3, 7, 2, 1]
>>> b.sort()
>>> b
[1, 2, 3, 7]
>>> b.index(3)
2
>>> len(b)
4

Dictionaries

A dictionary is like a list, except that you can index it by any sort of value.

>>> prim = { 'point' : 1, 'line' : 2, 'triangle' : 3 }
>>> prim['line']
2

A dictionary consists of keys and values. These can be retrieved via the functions keys and values.


>>> primitive.keys()
['line', 'triangle', 'point']
>>> primitive.values()
[2, 3, 1]

Dictionaries

The function has_key is useful to find out if a particular key exists in a dictionary, before trying to use it.

>>> primitive['square']
Traceback (most recent call last):
  File "", line 1, in ?
KeyError: square

>>> if primitive.has_key('square'):
...     print primitive['square']
... else:
...     print 'no such key'
...
no such key

Classes

A class is a data type, for objects that can contain both variables and functions.
A new class is defined by the class statement.

>>> class triangle:
...     def __init__(self, pos):
...             self.pos = pos
...             self.timesDrawn = 0
...     def draw(self):
...             print 'drawing triangle at', self.pos
...             self.timesDrawn += 1
...
>>> t = triangle([0,0,5])
>>> t.draw()
drawing triangle at [0, 0, 5]
>>> t.timesDrawn
1

Graphics Hardware & Software

Hardware

PC:

CPU
Memory
Disk
Graphics card
Peripherals: keyboard, mouse, monitor
Network, sound, etc.

Graphics card:

GPU
Memory
Video output

Hardware

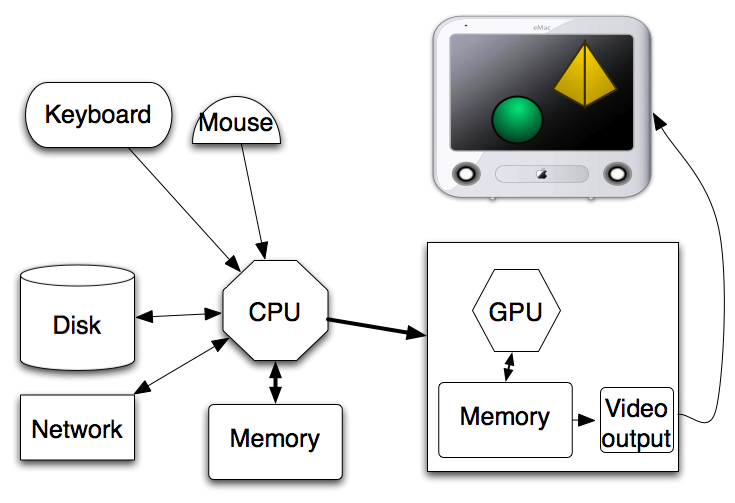

Graphics Pipeline

Program & data reside in PC memory
CPU runs program, calling graphics commands
Commands & data transferred to graphics card
Images rendered into graphics card memory
Video display generated from graphics card memory

Interface between CPU & graphics card:

PCI
AGP (1x, 2x, 4x, 8x)
PCI Express

Interface between graphics card & display:

VGA
DVI
Composite, S-Video

Graphics APIs

OpenGL
Direct3D
Performer
OpenInventor
OpenSceneGraph
Java3D
Virtools
OpenDX
AVS

Graphics APIs

API = Application Programming Interface

Python, C++, Java, Fortran, etc are languages

OpenGL, Direct3D, etc are graphics APIs

A graphics API can be used with any language, if there's a binding

Lower-Level APIs

OpenGL, Direct3D

Very basic commands for things like:

Drawing shapes (points, lines, triangles)
Setting colors
Setting positions, rotations, sizes
Defining a view
Loading textures

Most data management handled by application

Scene Graph APIs

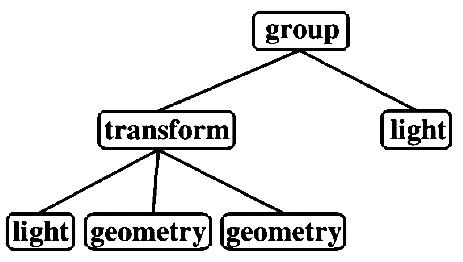

A scene graph is a tree used to represent a graphical scene

"Nodes" represent things like groupings, transformations, lights, geometry

Scene Graph APIs

Common features:

Standard data structures for geometry & graphics state
Automatic, optimized rendering
View culling
Level of detail
Model loaders
Math: vectors, matrices, quaternions
Intersection testing
Multiprocessing

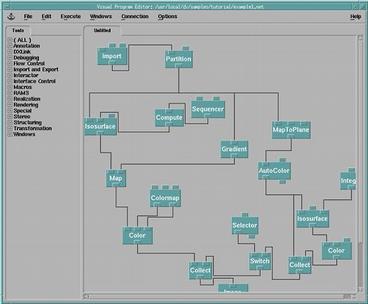

Visual Programming

Instead of writing code, plug together higher-level components

OpenGL

OpenGL uses the model of a pipeline
Commands and data are fed into the pipeline, processing is done, and the result (an image) comes out the other end (the display)

OpenGL libraries:

GL
GLU
GLX / WGL / AGL
GLUT

GLUT

OpenGL consists of commands related to drawing 2D & 3D objects (e.g. draw a triangle, define material properties, define a texture).

Drawing takes place in some sort of window, controlled by an operating system.

OpenGL avoids including any sort of functions to create or manipulate windows, or to do other user interface tasks (reading keyboard/mouse, etc).

GLUT (GL Utility Toolkit) provides functions for windowing and interaction.
It defines a simple interface that hides the OS-specific details of these tasks.

GLUT functions can be used in the same way under Unix, MacOS, and Windows, making GLUT-based programs more portable.

GLUT Callbacks

GLUT defines a basic program structure - an event loop, with callback functions.

callback - a function that you provide for other code to call when needed; the "other code" is typically in a library

GLUT uses callbacks for drawing, keyboard & mouse input, and other events.

Whenever the window must be redrawn, your drawing callback is called.
Whenever an input event occurs, your corresponding callback is called.

GLUT Program Structure

GLUT Example

# Minimal program to open & clear a window.
# This program is intended to introduce GLUT.

import sys
from OpenGL.GLUT import *
from OpenGL.GL import *
from OpenGL.GLU import *


def draw():
    glClear(GL_COLOR_BUFFER_BIT)
    glFlush()

def keyboard(key, x, y):
    if key == chr(27):
        sys.exit(0)

glutInit([])
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB)
glutInitWindowSize(200, 200)
glutInitWindowPosition(0,0)
glutCreateWindow("mywindow")
glutDisplayFunc(draw)
glutKeyboardFunc(keyboard)
glutMainLoop()

This document is by Dave Pape, and is released under a Creative Commons License.
