3D Views

• Depth Buffering
• Perspective
• Camera Movement

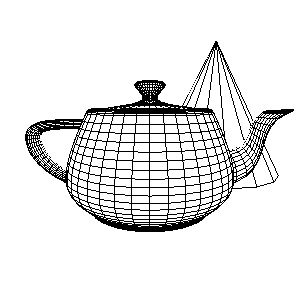

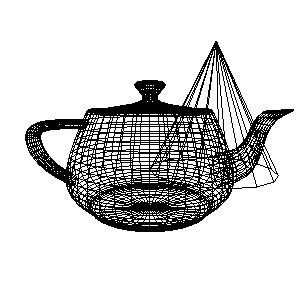

Hidden Surfaces

Hidden surfaces provide occlusion depth cue

Hidden Surface Algorithms

Many different algorithms developed over the years

• Painter's algorithm
  - must sort everything from back to front


• Binary Space Partition (BSP) tree


• Ray-casting


• Depth buffering
    (aka Z buffering)


• etc

Depth Buffering

Rendering a polygon means filling pixels

Color buffer contains RGB color of each pixel drawn

Depth buffer contains depth of each pixel drawn

Color	Depth

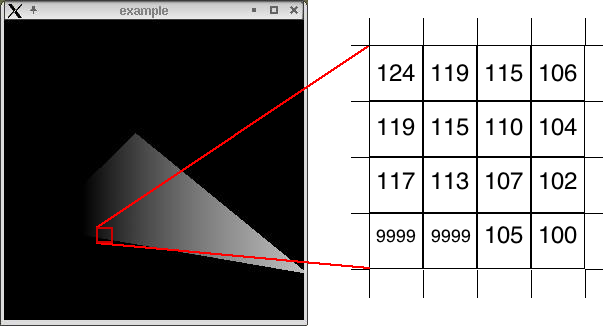

Depth Buffer

Depth Buffer

When drawing a new pixel, compare new depth to what's stored in depth buffer

Color	Depth

Polygons can be drawn in any order
Polygons can intersect

OpenGL Depth Buffering

Space must be allocated for the depth buffer:

glutInitDisplayMode(GLUT_RGB|GLUT_DOUBLE|GLUT_DEPTH)

Depth buffering must be enabled:

glEnable(GL_DEPTH_TEST)

Depth buffer must be cleared each frame:

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)

Depth Fighting

Depth values have limited resolution

i.e. the numbers are not infinitely precise

Rounding errors occur when polygons are filled

Polygon overlap can cause "depth-fighting"

Perspective

Perspective Projection

Perspective effects are created by a perspective projection transformation

• Linear perspective
• Relative size
• Relative height
• Texture gradient

Perspective + movement also yields motion parallax

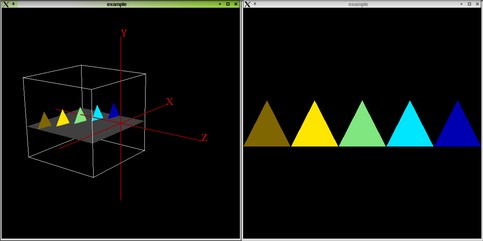

Orthographic Projection

Orthographic projection : projects rectilinear box onto display
Objects will not appear to change size with distance

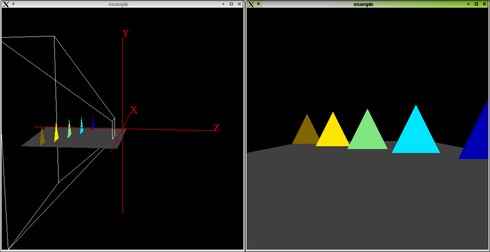

Perspective Projection

Perspective projection : projects frustum (truncated pyramid) onto display
Near objects appear larger, distant objects appear smaller

Perspective Projection

GL's perspective projection is a pin-hole camera, located at the origin, looking down the -Z axis

Camera has a field-of-view - angle representing (horizontal) extent of region viewed

Small angle = narrow field-of-view = telephoto lens
Large angle = wide field-of-view = wide-angle lens

OpenGL Perspective

    gluPerspective( fovy, aspect, zNear, zFar )

fovy = field of view, in Y direction, in degrees

aspect = aspect ratio (X:Y) of window

zNear = distance to near clipping plane

zFar = distance to far clipping plane

The "eye-point" of the perspective projection is at (0,0,0)

OpenGL Perspective

Example:

glMatrixMode(GL_PROJECTION)
glLoadIdentity()
gluPerspective(45, 1.333, 0.1, 100)
glMatrixMode(GL_MODELVIEW)

Camera Movement

Camera Movement

The OpenGL camera is always positioned at the origin, looking down the -Z axis.

The camera itself never moves.

Looking at the final image produced, moving a camera is equivalent to moving the world in the opposite direction.

e.g. moving everything to the right is will produce the same image as moving the camera to the left.

Camera Movement

To give the effect of moving the perspective viewpoint in OpenGL, use a transformation at the beginning of the frame, which affects all objects.

For example, to move the camera 10 units from the origin in the +Z direction, translate the world by -10 in Z:

def draw():
    glMatrixMode(GL_PROJECTION)
    glLoadIdentity()
    gluPerspective(fovy, 1, 0.1, 100)

    glMatrixMode(GL_MODELVIEW)
    glLoadIdentity()
    glTranslatef(0, 0, -10)

    drawObjects()

Camera Movement

For general camera movement:

• keep track of camera position & orientation
• apply inverse transformation to the world

def draw():
    global cameraX, cameraY, cameraZ
    global cameraHeading

    glLoadIdentity()
    glRotatef(-cameraHeading, 0, 1, 0)
    glTranslatef(-cameraX, -cameraY, -cameraZ)

    drawObjects()

Inverting a Transformation

Inverse of glTranslatef(x, y, z) is glTranslatef(-x, -y, -z)

Inverse of glRotatef(angle, x, y, z) is glRotatef(-angle, x, y, z)

Inverse of glScalef(x, y, z) is glScalef(1.0/x, 1.0/y, 1.0/z)

Inverse of a series of transformations is the inverses of the individual transformations, in reverse order.

gluLookAt

Alternative method of camera control
gluLookAt computes and applies an appropriate translation & rotation

    gluLookAt(cameraX, cameraY, cameraZ,
              lookX, lookY, lookZ,
              upX, upY, upZ)

cameraX, cameraY, cameraZ is camera location - point to look from

lookX, lookY, lookZ is point to look at

upX, upY, upZ is "up-direction" for the camera - affects camera roll

This document is by Dave Pape, and is released under a Creative Commons License.
