Depth









Depth Cues

"Hints" that suggest three-dimensionality - shape or distance

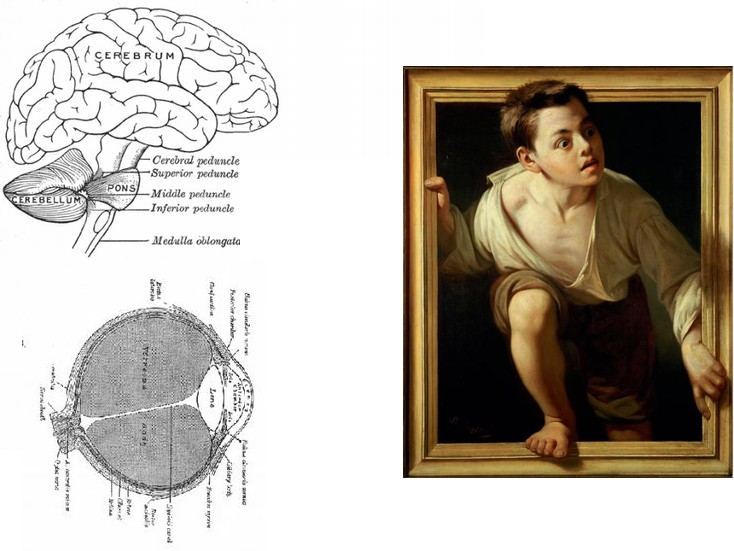

Based on physics, and workings of human vision






Depth Cues






Summary






Occlusion / Interposition


Limbourg. Tres Riches Heures: January. 1412-16





Occlusion / Interposition


Hiroshige. Plum Estate, Kameido. 1857





Occlusion / Interposition

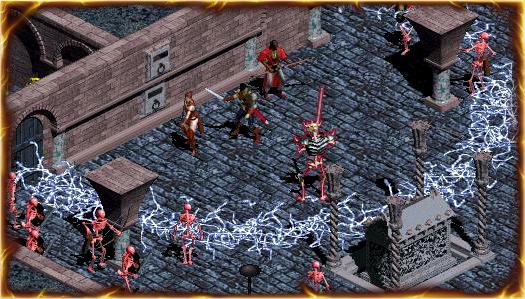

Diablo (Blizzard North, 1996)





Perspective






Linear Perspective


Jack Delano. Chicago Galewood yard. 1944





Linear Perspective


van Gogh. Corridor in the Asylum. 1889





Linear Perspective


Dali. The First Days of Spring 1932





Linear Perspective

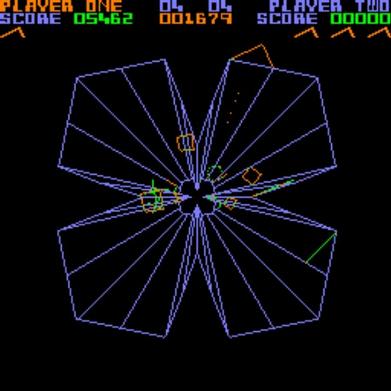

Tempest (Atari, 1981)

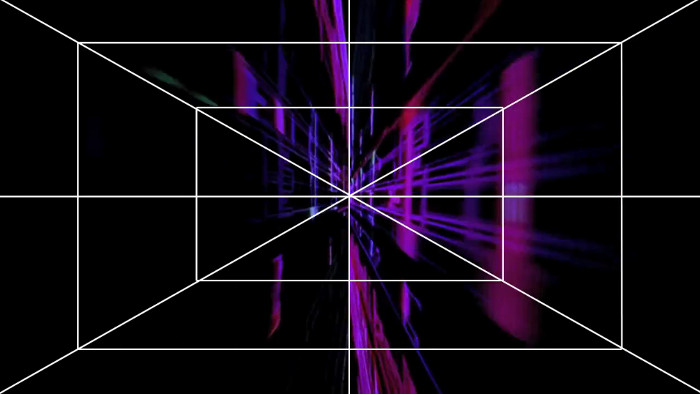

One-Point Perspective






Relative Size


Durer. The Adoration of the Magi. 1504





Relative Size

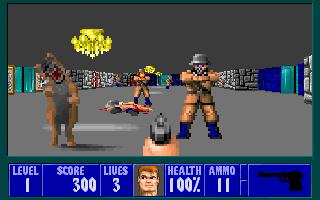

Wolfenstein 3D (id Software, 1992)





Relative Height


Limbourg. Tres Riches Heures: February. 1412-16





Relative Height


Constable. Chain Pier, Brighton. 1827





Relative Height


Marble Madness (Atari, 1984)





Texture Gradient


Gustave Caillebotte. Paris Street; Rainy Day. 1877





Texture Gradient


Gustave Caillebotte. Paris Street; Rainy Day (detail)





Texture Gradient

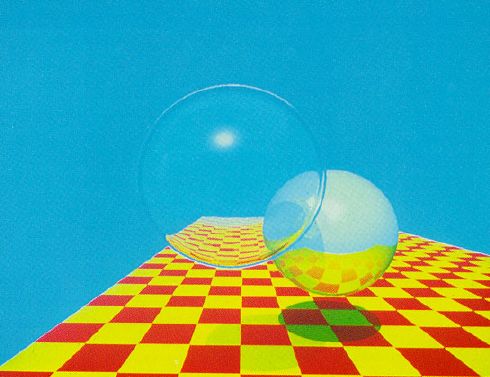

Turner Whitted. Ray Tracing. 1980





Lighting & Shadows


Michelangelo. David. 1504





Lighting & Shadows


Michelangelo. The Holy Family with the infant St. John the Baptist (the Doni Tondo). c. 1503-05





Lighting & Shadows


Monet. Rouen Cathedral, the West Portal and Saint-Romain Tower, Full Sunlight, Harmony in Blue and Gold) / Rouen Cathedral: Full Sunlight. 1894





Lighting & Shadows

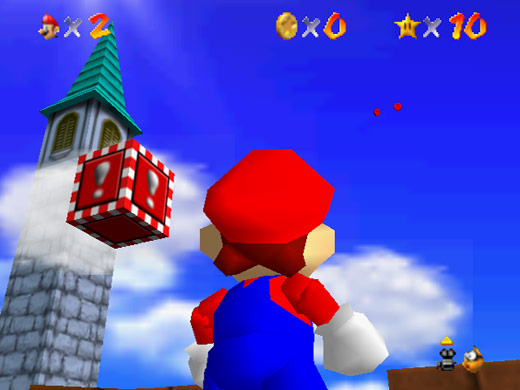

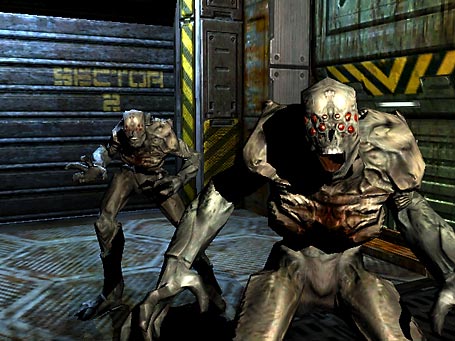

Mario 64 (Nintendo, 1996)      /      Doom 3 (id Software, 2004)





Lighting & Shadows

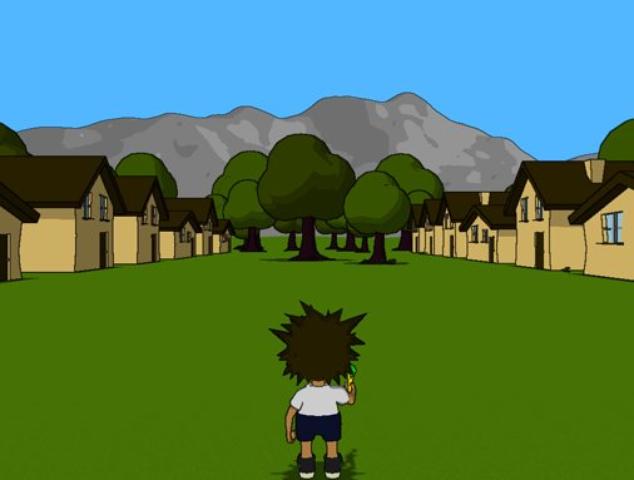

Cel Shading





Aerial Perspective


Gregg M. Erickson. Mount Ellinor. CC-BY





Aerial Perspective


Friedrich. Riesengebirge. 1835





Aerial Perspective


Monet. The Thames at Westminster (Westminster Bridge). 1871





Aerial Perspective

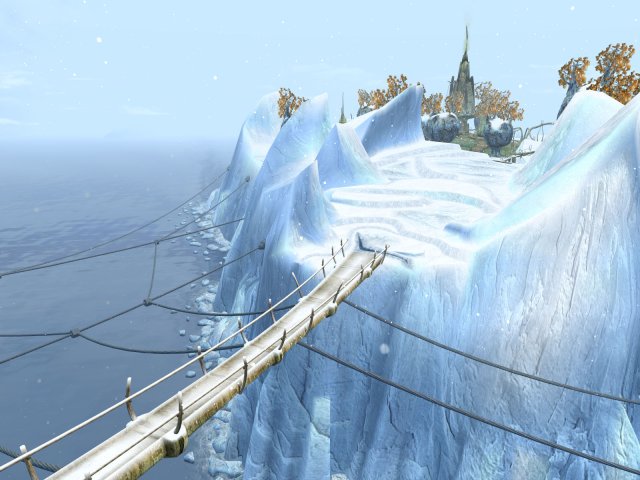

Myst V (Ubisoft, 2005)

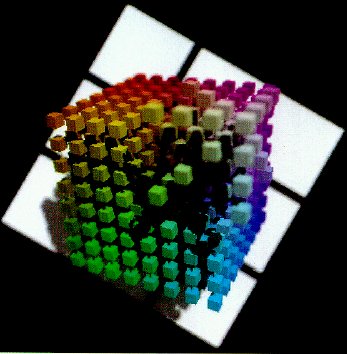

Accomodation (Focus)






Accomodation (Focus)


Vermeer. The Lacemaker. 1669-70





Accomodation (Focus)






Motion Parallax


Disney. Bambi. 1942





Motion Parallax

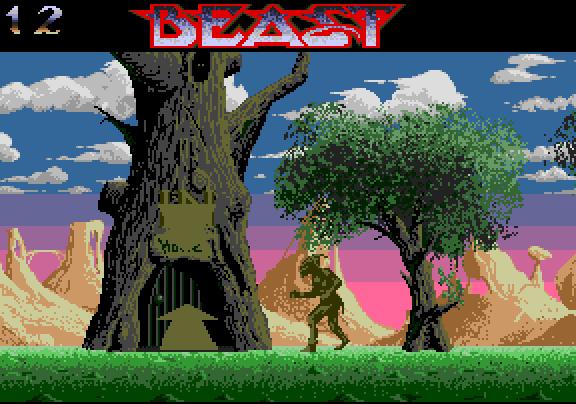

Shadow of the Beast (Psygnosis, 1989)

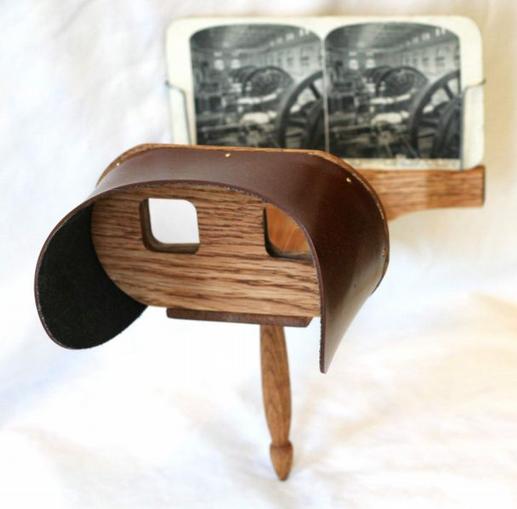

Stereo Parallax






Stereo Parallax






Stereo Parallax

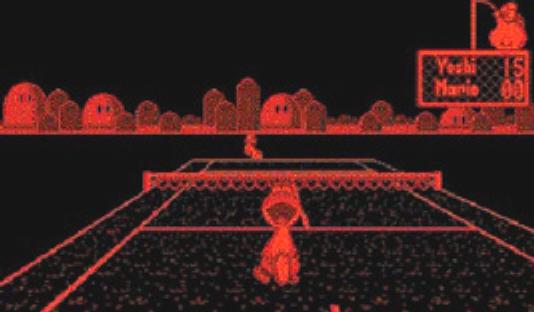

Virtual Boy - Mario's Tennis (Nintendo, 1995)





Stereo Parallax

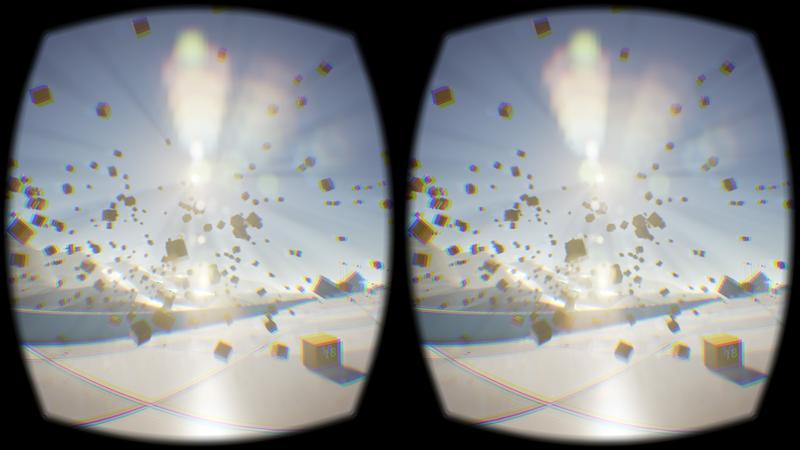

Oculus Rift
CC-BY-SA 4.0 image by Ats Kurvet





OpenGL

occlusion
depth-buffering (glEnable(GL_DEPTH_TEST))

linear perspective
relative size
relative height
perspective projection (gluPerspective)

texture gradient
perspective, texture mapping (glTexImage2D, etc)

shading, shadows
lighting (glLight, glMaterial, glNormal)

aerial perspective
fog (glFog)

accomodation
accumulation buffer (glAccum)

stereo parallax
quad-buffering, color-masking

motion parallax
transformations


Creative Commons License
This document is by Dave Pape, and is released under a Creative Commons License.
